Code: UL-250W-ST-BL

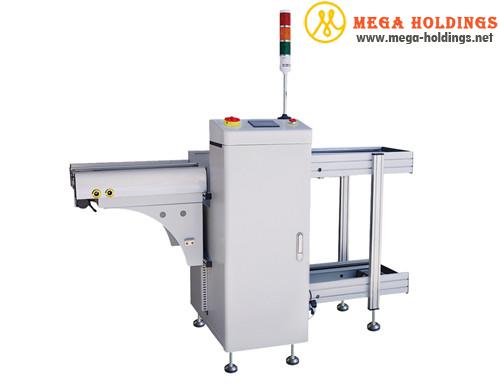

Product name: All in one machine
Series: Unloader
Material of stents: Sheet metal
Main function: This unit is all in one machine which include loading and unloading mode
Description:
PLC control system
HMI control panel, easier operation
Four step pitches selection(10,20,30,40mm)
Direction from left to right or right to left(option)
Loading and unloading mode switch according to production requirement.
Standard SMEMA
|
Specification/Type |
*UL-250W-ST-BL |
UL-330W-ST-BL |
UL-390W-ST-BL |
UL-460W-ST-BL |
|
Power Supply |
AC220V/50/60HZ |
|||
|
Air Supply |
5kgf/cm² |
|||
|
PCB Size(mm) |
350*50~280 |
460*50~350 |
535*50~400 |
535*50~460 |
|
PCB Direction |
left to right (option: right to left) |
|||
|
Magazine Size(mm) |
355*320*563 |
460*400*563 |
535*460*570 |
535*530*570 |
|
Step Pitches(mm) |
10,20,30,40 |
|||
|
Transport Height(mm) |
900±20 |
|||
|
Transmission Speed |
10m/s |
|||
|
Track Fixed Side |
front side fixed(back side fixed) |
|||
|
Main Motor Power(W) |
220 |
|||
|
Machine Size L*W*H(mm) |
1830*760*1200 |
2100*850*1200 |
2310*910*1200 |
2310*980*1200 |
|
Weight(kg) |
252 |
272 |
292 |
312 |
|
Control Panel |
1.Touch screen(T); 2.Button(B) |
|||
|
*is The Standard Model |
||||
