CPM-III High Speed Pick&Place Machine

Mag                 Maglev linear motor and grating ruler

High-speed mounting head

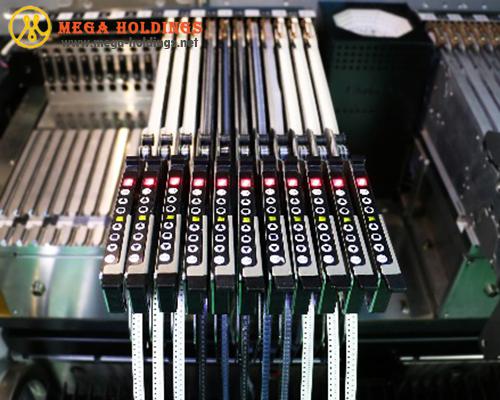

Electronic feeder
Automatic nozzle changer(optional)
Linear-scanning camera
High-precision thermal mapping

Specification：

Placement speed：65000chips/h

Servo resolution：50um

Repeat accuracy：±0.02mm

Placement accuracy：±0.04mm

Board size：minimum 50mm×50mm，maximum1200mm×460mm

Board thickness：0.4mm~3.0mm

Board weight ：0.68Kg below

PCB transmission mechanism：three phrases

Component type：108 categories（maximum / converted to 8mm volume）

Nozzle quantity：24

Feeder capacity：108 slots one side，216 slots two sides

Feeder specification：8mm~56mm

Applicable component：From the tiny chip of 0201 to the large component of 30mm with various of resistors and capacitors, IC, BGA etc.

Power：AC380V

Air source ：0.5~0.8Mpa

Control system：Windos7 control platform of the Chinese and English interface

Machine size：L2850mm×W1680mm×H1450mm
